Assembly Instructions

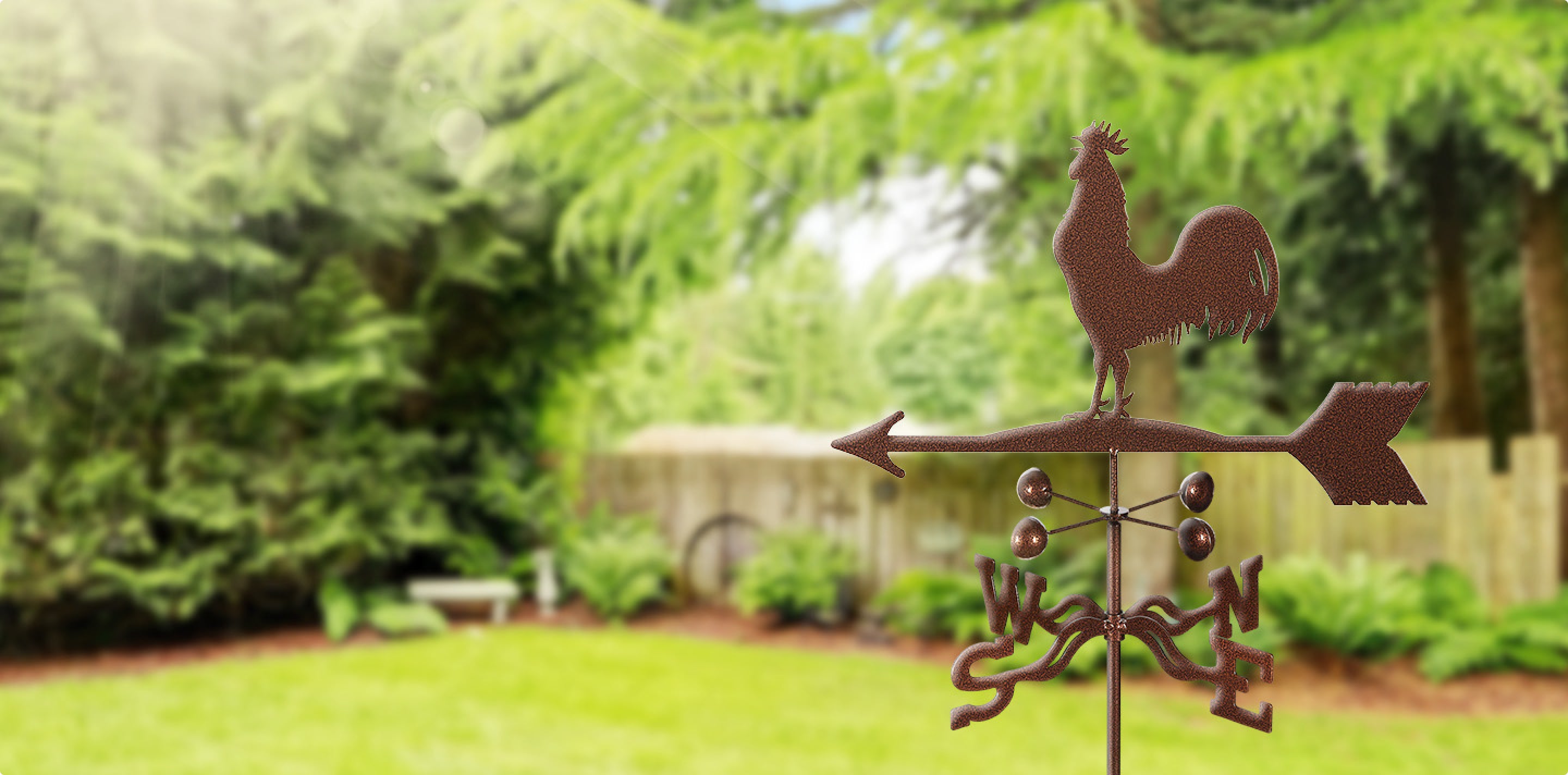

  1. If optional 5/16" x 3 ft. rod is included, drive the silver rod half way into the ground. Place the 60" garden mount over top of the rod. If the silver rod is not included simply push the 60" garden mount into the ground to desired height. (minimum of 12" into the ground)
  2. Place the directional over the pole (approx. 6" from the tip). Point the N to the north and tighten the screw that is located between the N and E.
  3. Slide the windcups onto the pole with the ball bearing side down.
  4. Place the design top onto the pole.

Note

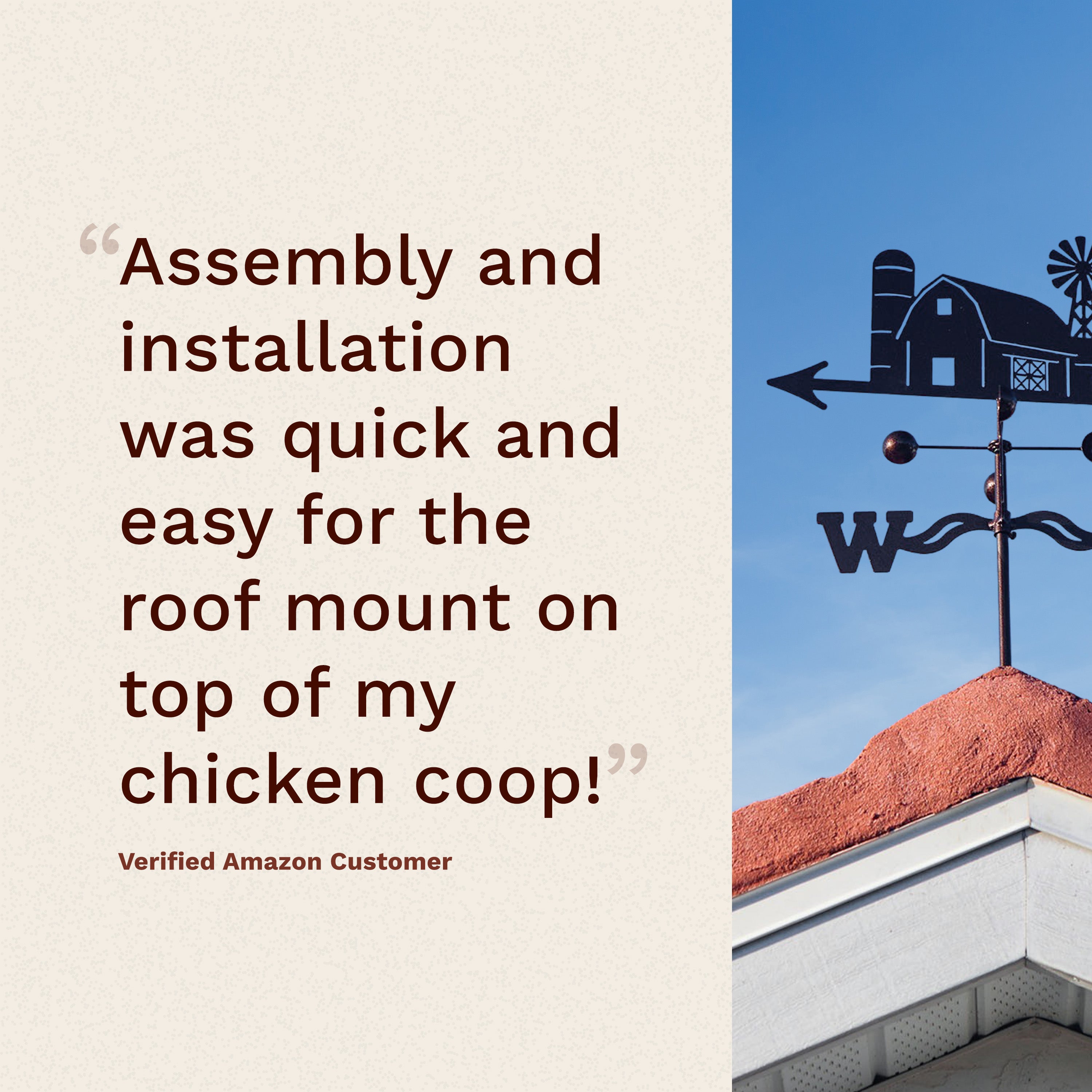

When installing on a roof, deck, post or cupola mount, install your mount to your mounting surface. Place the short rod into the tubing of the mount. Tighten the set screw provided on the mount. Slide the directional (NSEW) over the tip of the rod. Set N to North and tighten the set screw. Place the windcups over the tip of the rod ( bearing side facing DOWN). Then slide the top on your weathervane.
